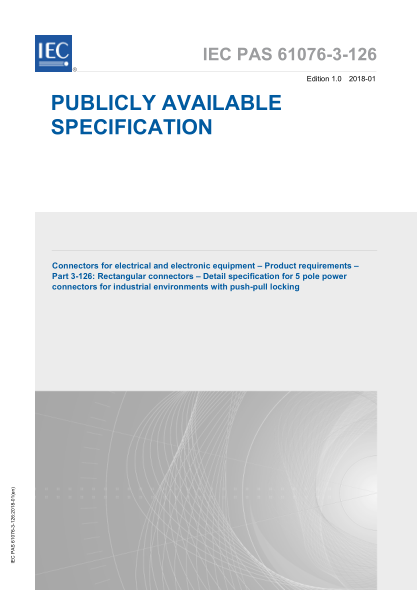

IEC PAS 61076-3-126-2018 電氣和電子設備連接器--產(chǎn)品要求--第3-126部分:矩形連接器--用推拉鎖定工業(yè)環(huán)境的5極電源連接器的詳細規范 Connectors for electrical and electronic equipment – Product requirements – Part 3-126: Rectangular connectors – Detail specification for 5 pole power conn

This document covers rectangular IP65/IP67 connectors with 5 poles for electric power supply up to 16 A. These connectors consist of fixed and free connectors, either rewirable or non- rewirable (for both portions). It uses the general function principles of the push-pull connector housing system described in IEC 61076-3-117 with IP65/IP67 degree of protection according to IEC 60529 for harsh applications.
Male connectors have 5 square 1 mm electric contacts, with 16 A rated current. Connectors according this document are without breaking capacity COC according to IEC 61984, therefore they are not intended to be engaged or disengaged in normal use when live or under load, if not otherwise specified by the manufacturer.dition 1.0 2018-01 PUBLICLY AVAILABLE SPECIFICATION Connectors for electrical and electronic equipment – Product requirements – Part 3-126: Rectangular connectors – Detail specification for 5 pole power connectors for industrial environments with push-pull locking IEC PAS 61076-3-126:2018-01(en) THIS PUBLICATION IS COPYRIGHT PROTECTED Copyright ？ 2018 IEC, Geneva, Switzerland All rights reserved. Un
